29-6359
Permanent Magnet
Height: 6.56”
Width: 13.79”
Depth: 5.48”
12 Volts 3 speed
590 CFM @ .20 S.P.
50-2000 Blower |
29-6350
Permanent Magnet
Height: 6.56”
Width: 13.79”
Depth: 5.48”
12 Volts 3 speed
653 CFM @ .20 S.P.
Use In Ducted Systems
|
|
29-6370
Permanent Magnet
Height: 5.00”
Width: 13.79"
Depth: 4.50”
3 speed amps @
12 Volts
50-3000 Blower
|
00850
Series Wound
Height: 5.00”
Width: 13.79"
Depth: 4.50”
3 speed 12.8 amps @
12 Volts
378 CFM @ 0 S.P.
Available in 24 Volts
( 00850-1)
|
|

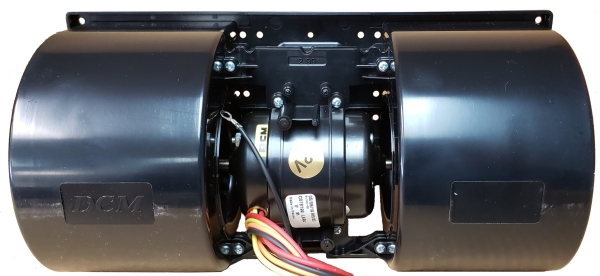

29-6355
Series Wound
Height: 6.56”
Width: 13.79”
Depth: 5.48”
3 Speed 14.6 amps
@ 13.5 Volts 482 CFM @ 0 S.P
|

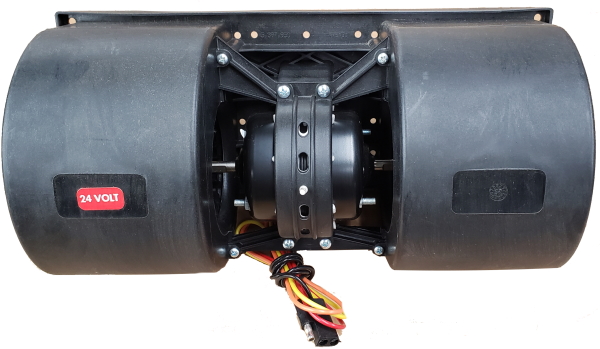

29-6356
Series Wound
Height: 6.56”
Width: 13.79”
Depth: 5.48”
24 Volts three speed Hi Torque
480 CFM @ .20 S.P
|
|
29-6361
Permanent Magnet
Height: 5.00”
Width: 13.85”
Depth: 4.50”
12 Volts three speed
398 CFM @ 0 S.P.
|

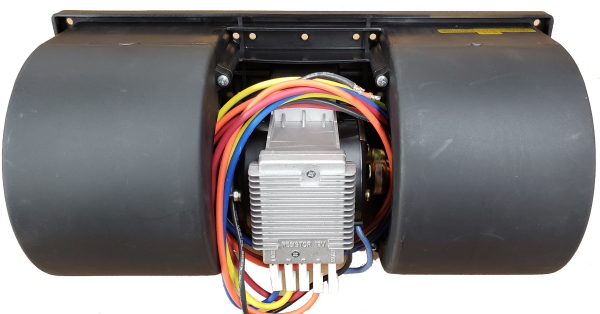

29-6354
Permanent Magnet
Height: 6.625”
Width: 13.85”
Depth: 5.50”
Four speed 20.8 amps
@ 13.5 Volts
580 CFM @ 0 S.P.
Resistor part # 15-2408
|
|

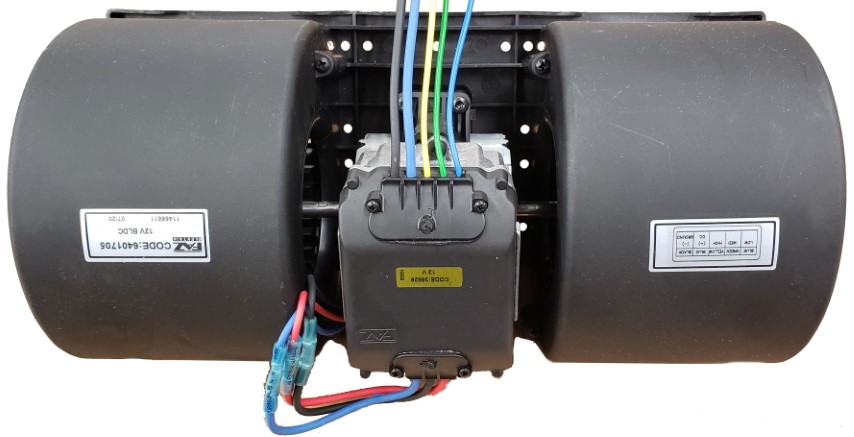

29-6371
Brushless
|

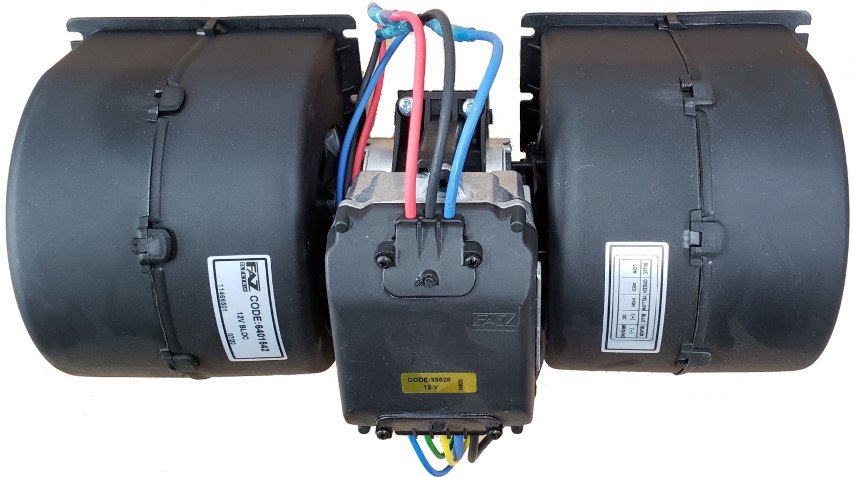

29-6372
Brushless
|
|
29-6373
Brushless
Coming Soon |
|
|
|
00845
Series Wound
Height: 7.17”
Depth: 6.57”
Outlet: 4.00”
12 Volts 3 speed
280 CFM @ .20 S.P.
Available in 24 Volts
( 00845-A)
|
00846
Series Wound
Height: 7.17”
Depth: 6.57”
Outlet: 6.00”
12 Volts 3 speed
360 CFM @ .20 S.P.
Available in 24 Volts
( 00846-A)
|
|
|
|
|
|
|
|
|
